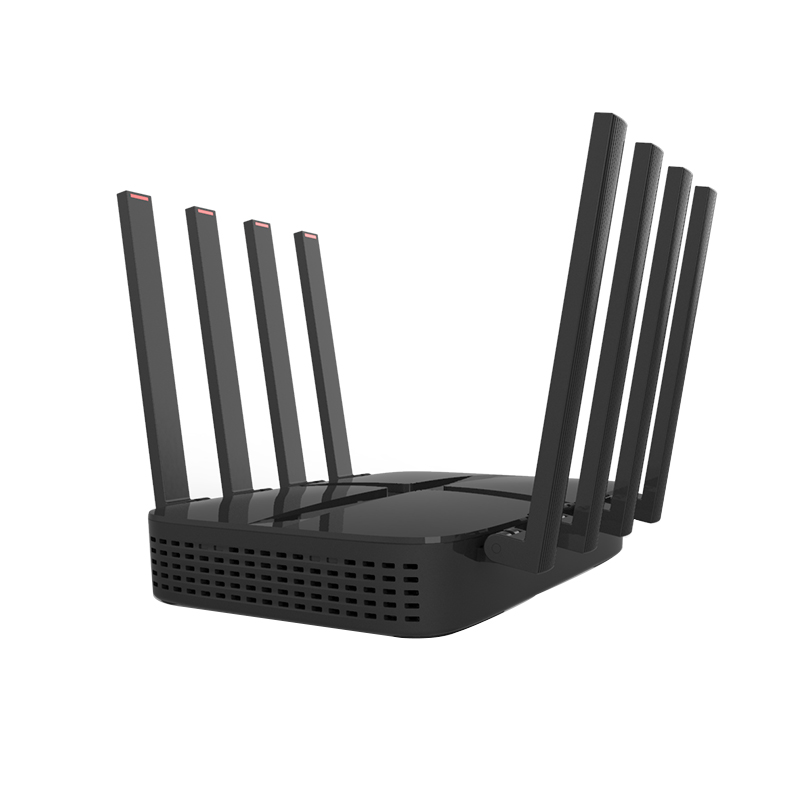

MR•Net Multi-Router

Supported carriers:
- Verizon, T-mobile, AT&T
Operating bands:
- LTE-FDD: B2, B4, B5, B12, B13, B14, B66, B71
- WCDMA: B2, B4, B5
Single LTE EC25-AF modem transmitter power by bands:
- WCDMA bands: 24dBm+1/-3dB (up to 0.32 W)
- LTE-FDD bands: 23dBm±2dB (up to 0.32 W)
Ethernet RJ45
- 2x 10/100 Ports
Operating conditions:
- Voltage: 12-23 V. - Power consumption: 18 W - Operating temperatures: 32-95° F - Air humidity: up to 80%
Weight & Dimensions
- Weight: 1.19 lbs + - Dimensions: 8 13/16 " wide x 1 9/16" tall x 6 1/2 deep (not including antennas)
Routing / Switching Protocols
- Pv4/IPv6, Static Routing, NAT, GRE, Port Routing, Port Forwarding
IP Applications
- DDNS, DNS Proxy, DHCP / DHCPv6
VLAN & VPN
- VLAN, IPSec, VPN Failover
Wi-Fi
- Wi-Fi Hotspot, Wi-Fi as additional gateway
Security
- Firewall, e2e encryption for each individual gateway

LTE,WAN

Aggregation of any
existing internet sources

2.4Ghz/5Ghz

Build-in Wi-Fi
(2.4GHz & 5GHz)

120 sec

Ready to go in less
than 2 minutes

Up to 100 Mbps upload
and download speed

100 Mbps

Bonding of 3 independent
LTE channels

3X reserve

Works up to 5 hours
with external battery*

5 hours

MR-005 (Regular)

Setup guide

Unpack your box

Step 1

MR•Net Multi-Router is a plug&play device
for unbreakable internet connection
from any location. It takes less than a minute
to set up and ready to roll.

Open all 8 antennas

Step 2
